ESCALATOR BASIC COMPONENTS

Preferably, escalators are designed to conveniently transport people from traveling to different floor levels. Escalators have the capacity to move large numbers people with no waiting interval which definitely helps people save time especially when in a rush. However, this machinery and all its escalator parts require regular checkup and cleaning to maintain its stability and effectiveness. Thus, escalators are composed of different functional components which make it proficiently work. Some of the basic escalator parts and components are specified as follows.

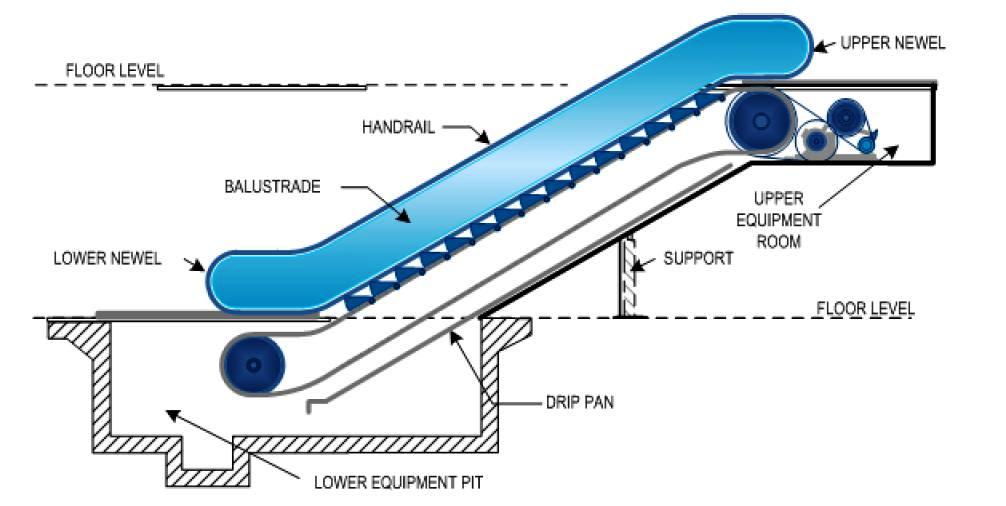

Landing Platforms, Escalator Track and Truss

Primarily, landing platforms are consists of four major components including combplates, also known as walk-on plates which serves as the entrance and exit for the passengers to the steps. The comb segments that may also be called a combplate by non-standard noun name which are replaceable. The access covers which is used as an entrance to the bottom area for inspection, maintenance, and repairs. And the comb lights which are identified as an optional safety device used to irradiate the area where steps and comb segments come across, attached at the upper and lower landing above the comb segments. On the other hand, the escalator track system is built into the truss where it moves the steps down along the bottom of the truss until they reach the bottom landing, then the tracks separates and the steps repeatedly undertake a staircase configuration. On the other hand, escalator truss is commonly identified as the structural frame of the escalator. It is consists of three major areas including the lower section, incline section and the upper section. Escalators truss plays a significant role in the escalator mechanism as it is ideally designed to carry the entire contents of the escalator equipment and the steel covering without fluctuating more than indicated by the contract necessities. It also transmits all the straight track sections connecting the upper and lower sections.

Escalator Steps, Handrails and the Balustrade

Escalator steps are compacted material which can be made out of aluminum or steel. Escalator steps are associated by continuous metal chain that forms a closed loop by which executes the steps to move. Ideally, escalator steps are consists of six major components including the step plate or thread which is usually made of an aluminum plate. The step riser which is designed to pass between the cleats of contiguous step, the frame which is the main support for riser, step tread, and step wheel; the demarcations which are identified as the yellow strips of the step tread, the trail wheels which are used to guide the step and support its load on the track. And the step hooks which is typically attached to the end of the frame. On the other hand, handrail is the escalator part that provides useful handhold for the passenger which is constructed with distinct sections including the body piles, cover stock, cotton slider, and steel. Yet, the balustrade is consists of the handrail and the exterior supporting structure of the escalator which are classified in two major modules including interior and exterior components. Each of these components is also classified for their sub components which play significant roles to the accurate routine of the escalator.

Escalators and Its Components and Parts

An escalator is a moving staircase – a transport gadget for conveying individuals between floors of a building. Escalators are fueled by consistent speed rotating current engines and move at around 1– 2 feet for each second. An escalator is a power-driven, constant moving stairway intended to transport travelers all over short vertical distances. Escalator Parts mostly involved are the escalator steps, belts and escalator combplates. But those are just the exterior and the Escalator Parts that riders will have to step on, but behind the scnes is the engine or motor that drives the whole system.

Escalators are utilized the world over to move passerby traffic in spots where lifts would be unfeasible. Essential zones of use incorporate strip malls, air terminals, travel frameworks, exchange focuses, inns, and open structures. The advantages of escalators are many. They have the ability to move extensive quantities of individuals, and they can be set in indistinguishable physical space from stairs would be. They have no holding up interim except if there are extremely a colossal number of individuals utilizing an escalator.

These two stages house the bended segments of the tracks, just as the apparatuses, gears, escalator parts and engines that drive the stairs. The best stage contains the engine get together and the primary drive outfit, while the base holds the progression returns idler sprockets. These segments additionally stay the closures of the escalator support. Also, the stages contain a story plate and a brush plate. The escalator combplates gives a place to the travelers to remain before they step onto the moving stairs. This plate is flush with the completed floor and is either pivoted or removable to enable simple access to the hardware beneath. The brush plate is the piece between the stationary floor plate and the moving advance. It is so named in light of the fact that its edge has a progression of spikes that take after the teeth of a brush. These teeth work with coordinating spikes on the edges of the means. This structure is important to limit the gap between the stair and the arrival, which keeps objects from getting captured in the gap.

The truss is an empty metal structure that connects the lower and upper arrivals. It is made out of two side segments consolidated with cross props over the base and just underneath the best. The finishes of the bracket are appended to the best and base landing stages by means of steel or solid backings. The bracket conveys all the straight track segments interfacing the upper and lower areas.

The track framework is incorporated with the bracket to direct the progression chain, which constantly pulls the means from the base stage and back to the best in a perpetual circle. There are really two tracks: one for the front wheels of the means and one for the back wheels of the means. The overall places of these tracks cause the means to frame a staircase as they move out from under the brush plate. Along the straight segment of the bracket the tracks are at their greatest separation separated. This setup powers the back of one stage to be at a 90-degree edge with respect to the progression behind it.

Altogether these escalator parts and components will work synchronously for a safe and comfortable ride either up or down without a hassle.
